Product Category
Dies
HPDC, GDC, and LPDC permanent dies engineered for dimensional accuracy, long die life, and consistent casting quality
Overview
What Are Dies?
HPDC dies operate under extreme pressure and thermal shock for very rapid, high-volume production. GDC dies rely on gravity to fill the cavity and are used for engine brackets, housings, and structural components requiring good surface finish. LPDC dies use low applied pressure to fill the die from below, promoting directional solidification for high-integrity castings with minimal porosity — ideal for alloy wheels and cylinder heads.
High-Pressure (HPDC), Gravity (GDC), and Low-Pressure Die Casting (LPDC) dies are permanent metal molds designed for high-volume production of aluminum castings. Vyankatesh Engineering manufactures complete die casting tooling, from engineering consultation through managed thermal processing, precision grinding, blue matching, and pre-delivery inspection.
Why Choose Vyankatesh
Benefits
H-13 tool steel with vacuum hardening and nitriding provides the thermal fatigue resistance and erosion resistance needed for extended die life.
Precision-ground parting lines and cavity dimensions produce castings that require minimal post-machining, reducing total part cost.
Blue-matched parting faces eliminate or minimize flash formation, reducing casting cleaning and finishing time.
We can contribute to gating, cooling, and thermal management design before manufacture, drawing on our experience with common aluminum alloys and die casting processes.
How We Make Them
Manufacturing Process
Every die at Vyankatesh Engineering goes through a controlled, documented manufacturing sequence from certified raw material to finished, inspected component.
Gate, runner, vent, and cooling circuit design reviewed before manufacture
Cavity, core, and structural features rough and semi-finish machined
Heat treatment to 44–48 HRC with vacuum process for clean surfaces
Parting faces, cavity surfaces, and register faces ground to final dimensions
Cavity surfaces polished to specified surface finish requirements
Parting faces blue-matched to verify contact and prevent flash
Full die assembly check; cooling circuits pressure tested; dimensional inspection
Our Range
Dies Products
Browse our complete range of dies. Each product page contains full technical specifications, material information, applications, and FAQ.

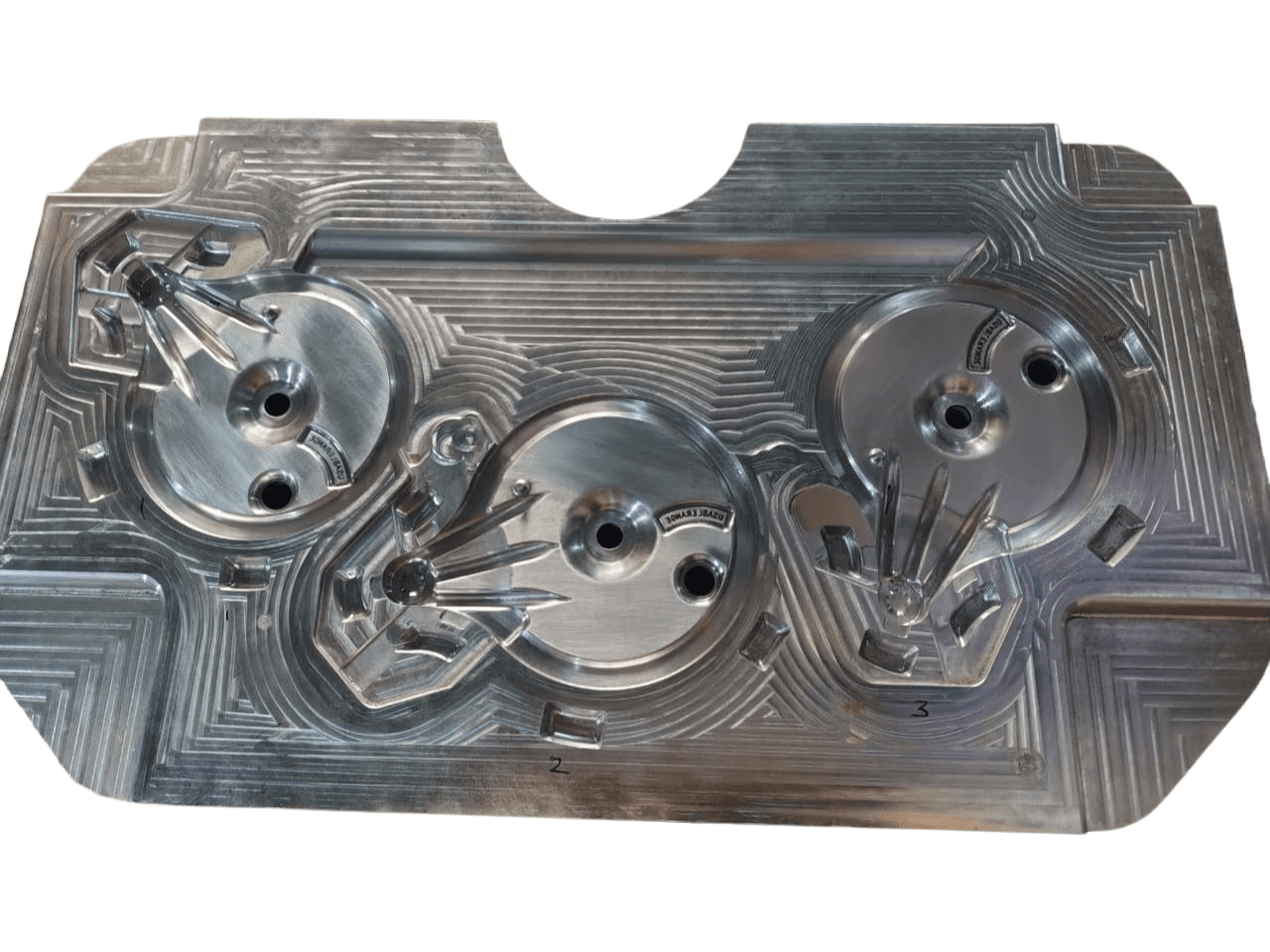

High-Pressure Die Casting (HPDC) dies engineered for high-volume automotive and industrial applications. Precision manufactured from H-13 tool steel with advanced thermal management and robust structural integrity.
View Specifications

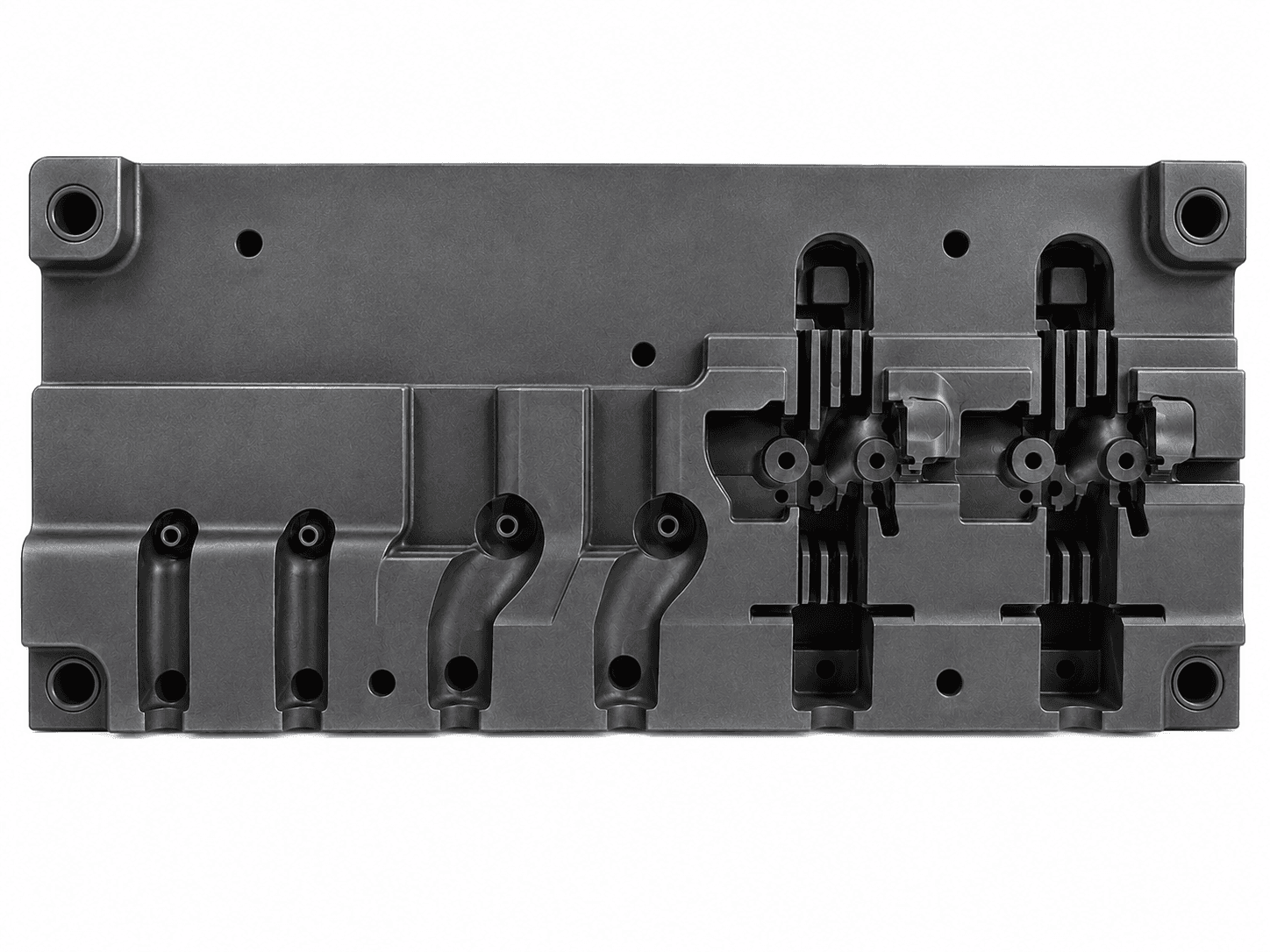

Low-Pressure Die Casting (LPDC) dies engineered for high-integrity aluminum castings. Manufactured from premium tool steels with precise thermal management capabilities to ensure optimal directional solidification and superior casting quality.
View Specifications

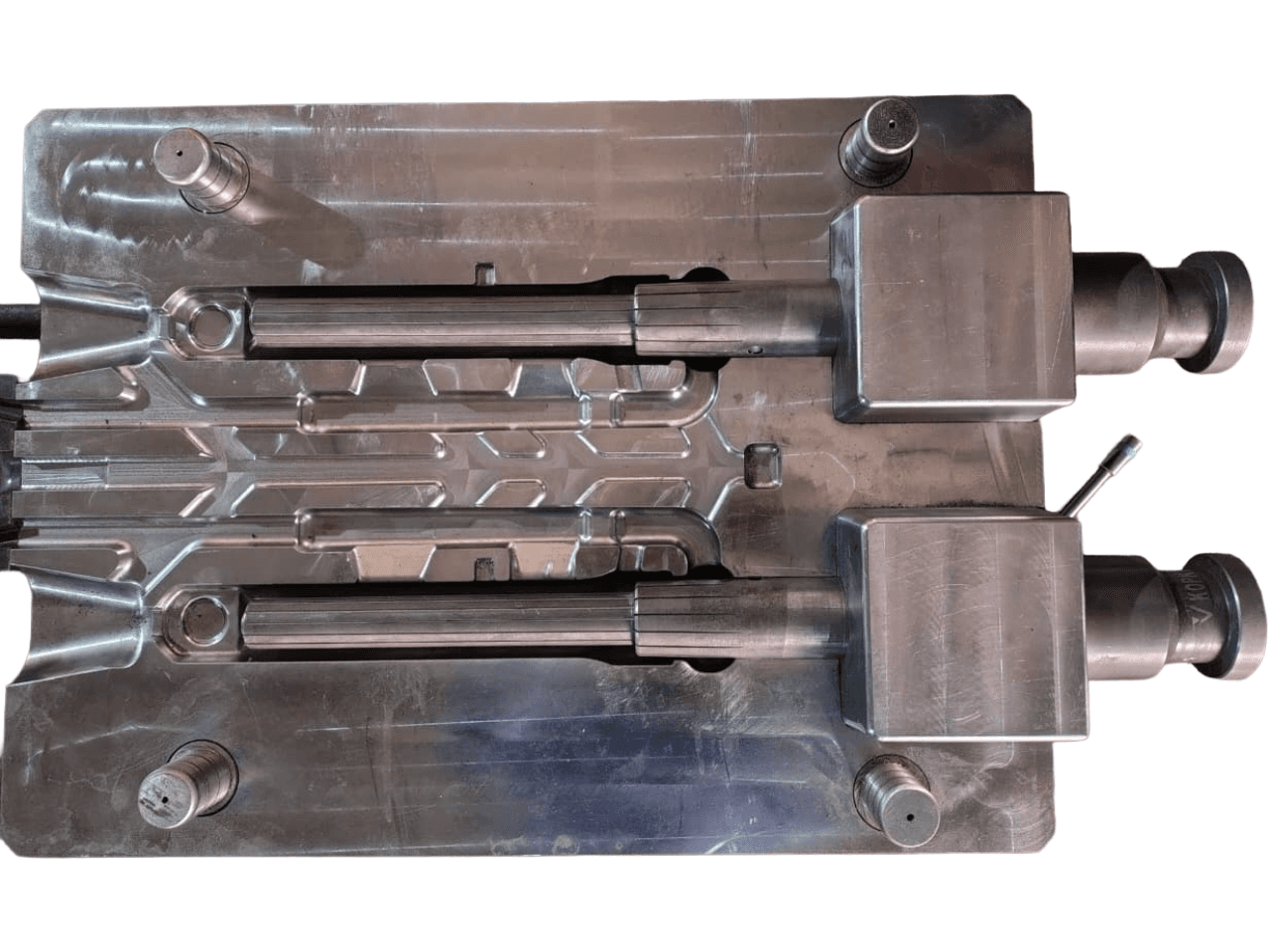

Gravity Die Casting (GDC) dies designed for robust, long-lasting performance in high-volume aluminum casting. Precision machined and thermally balanced to ensure consistent casting quality and reduced cycle times.
View SpecificationsBuying Guide
Selection Guide
Not sure which product is right for your application? Use this quick reference guide to identify the correct starting point.
| Product | Best For | Key Specification |
|---|---|---|
| HPDC Die | High-volume aluminum casting for automotive, aerospace, and industrial sectors | Thermal management; fast cycles; long die life |
| GDC Die | Medium-volume aluminum castings where gravity filling is suitable — brackets, covers, housings | Good surface finish; dimensional stability; long life |
| LPDC Die | High-integrity castings requiring minimal porosity — alloy wheels, cylinder heads, pressure-tight parts | Directional solidification; pressure-tight castings; X-ray quality |
Serving
Industries Served
Expert Answers
Frequently Asked Questions
Need Custom Dies?
Share your drawing, specification, or sample and our engineering team will provide a tailored solution with competitive pricing.
