GDC Die

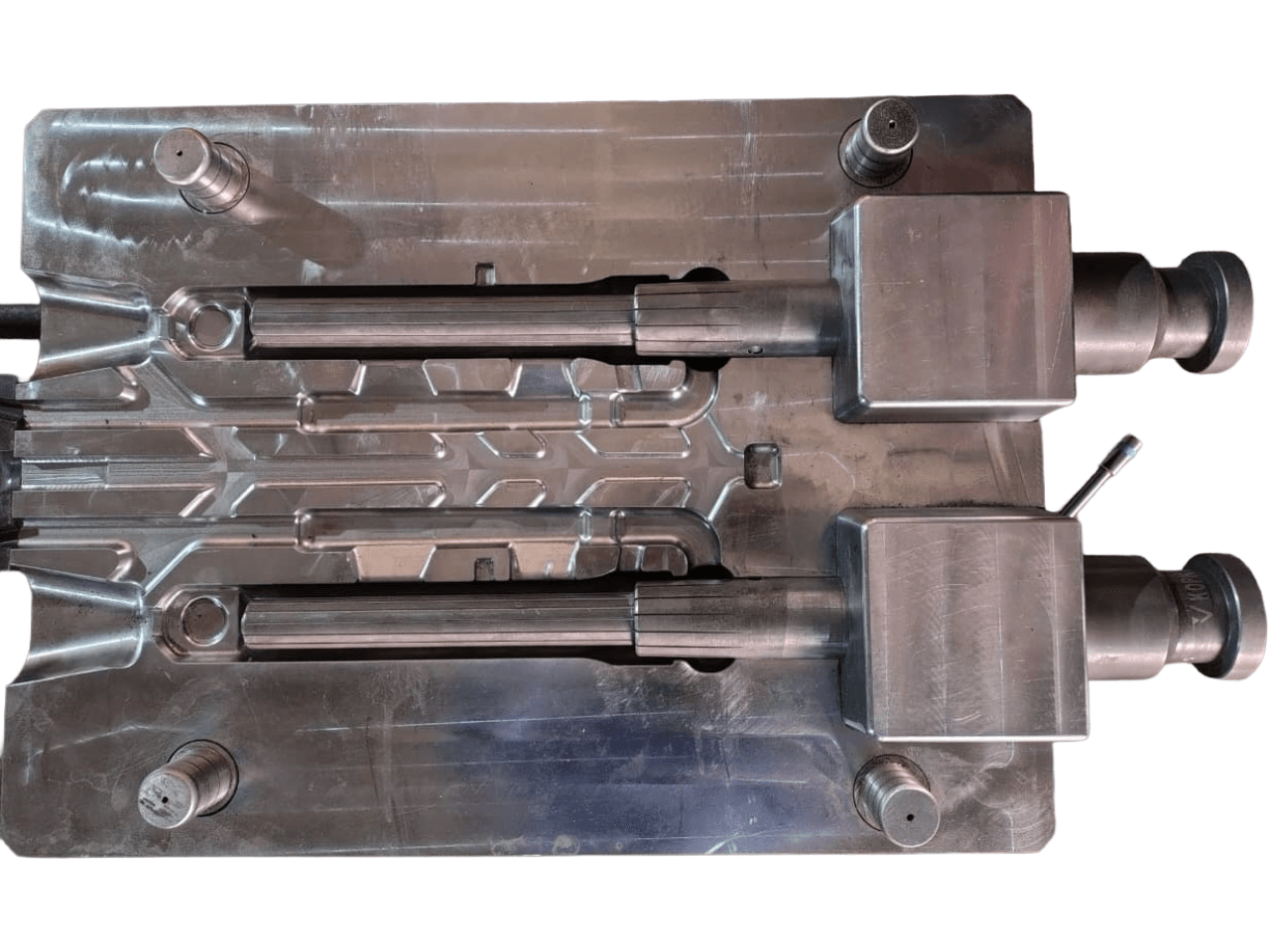

Gravity Die Casting (GDC) uses the force of gravity to fill a permanent metal mold with molten aluminum. It produces castings with better dimensional accuracy, smoother surface finish, and superior mechanical properties compared to sand casting, while remaining more economical than pressure die casting for medium-volume production. Vyankatesh Engineering GDC Dies are precision-machined from premium tool steel, thermally balanced to control solidification, and blue-matched on all seating faces to prevent flash.
Industries Served
Engineering Detail
Key Features
Manufactured from AISI H-13 / DIN 1.2344 for resistance to thermal fatigue in GDC temperatures
Vacuum hardening provides consistent hardness without surface oxidation or distortion
Nitriding on metal-contact surfaces extends die life by resisting erosion from molten aluminum
Precision-ground parting lines and seating faces prevent flash formation
Drilled cooling circuits positioned to control solidification direction and minimize shrinkage
Complete die assembly and fit check performed before delivery
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Automotive engine mounting brackets and supports
- Pump housings, valve bodies, and fluid system components
- Electrical enclosures and switch housings
- General engineering structural components
- Replacement dies for worn or damaged permanent molds
Why Choose Vyankatesh
Key Advantages
Longer die life compared to non-nitrided alternatives due to surface hardness
Precision blue matching eliminates flash and reduces finishing cost on castings
Controlled cooling reduces shrinkage and porosity in casting sections
End-to-end management means one point of contact for design, manufacture, and support
Quality Standard
Quality Assurance
Assembly and blue matching inspection performed before dispatch. Cooling circuit pressure tested to confirm integrity.
Expert Answers
Frequently Asked Questions
Need Custom GDC Die?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
