Jet Cool Core Pin

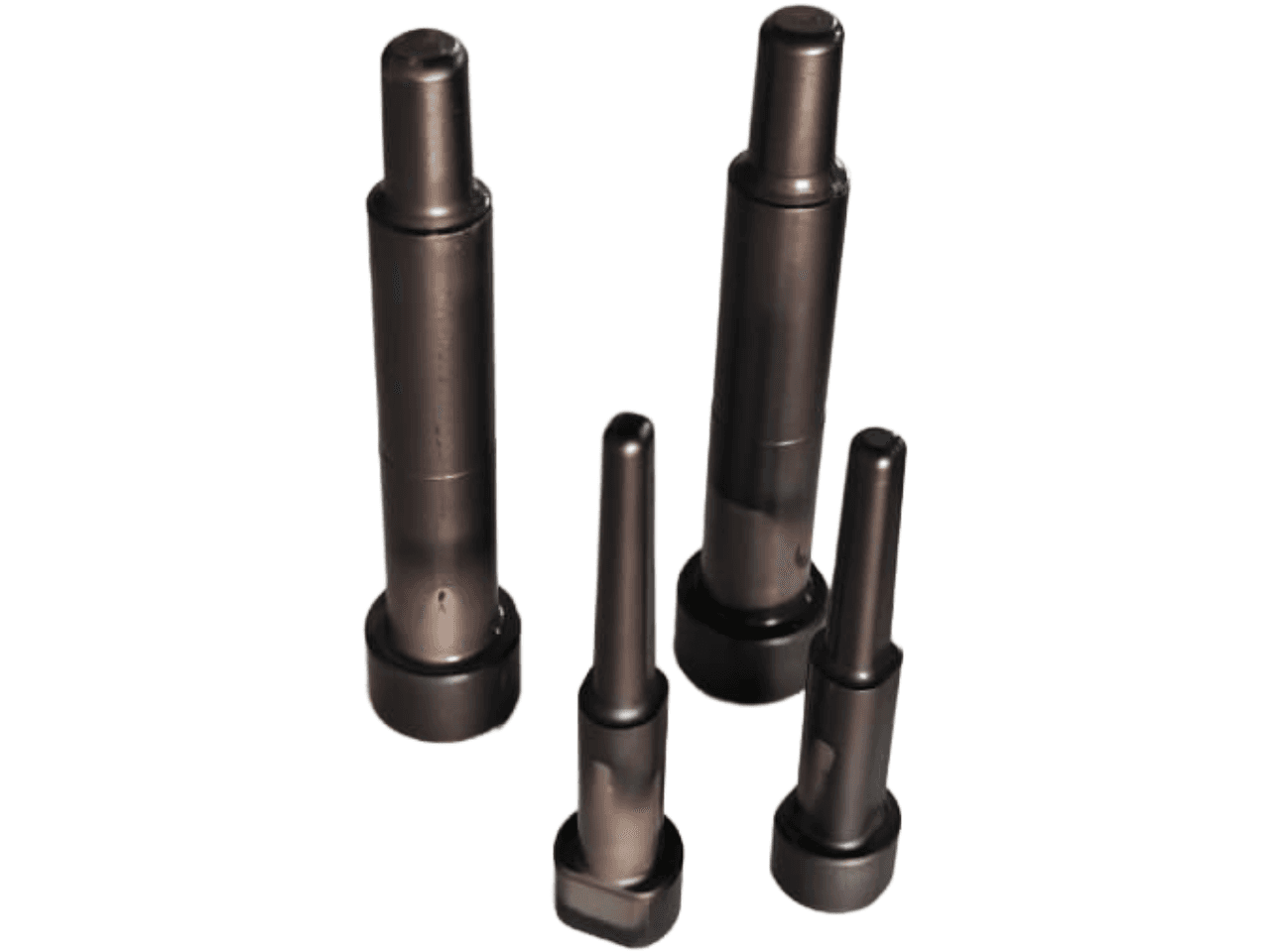

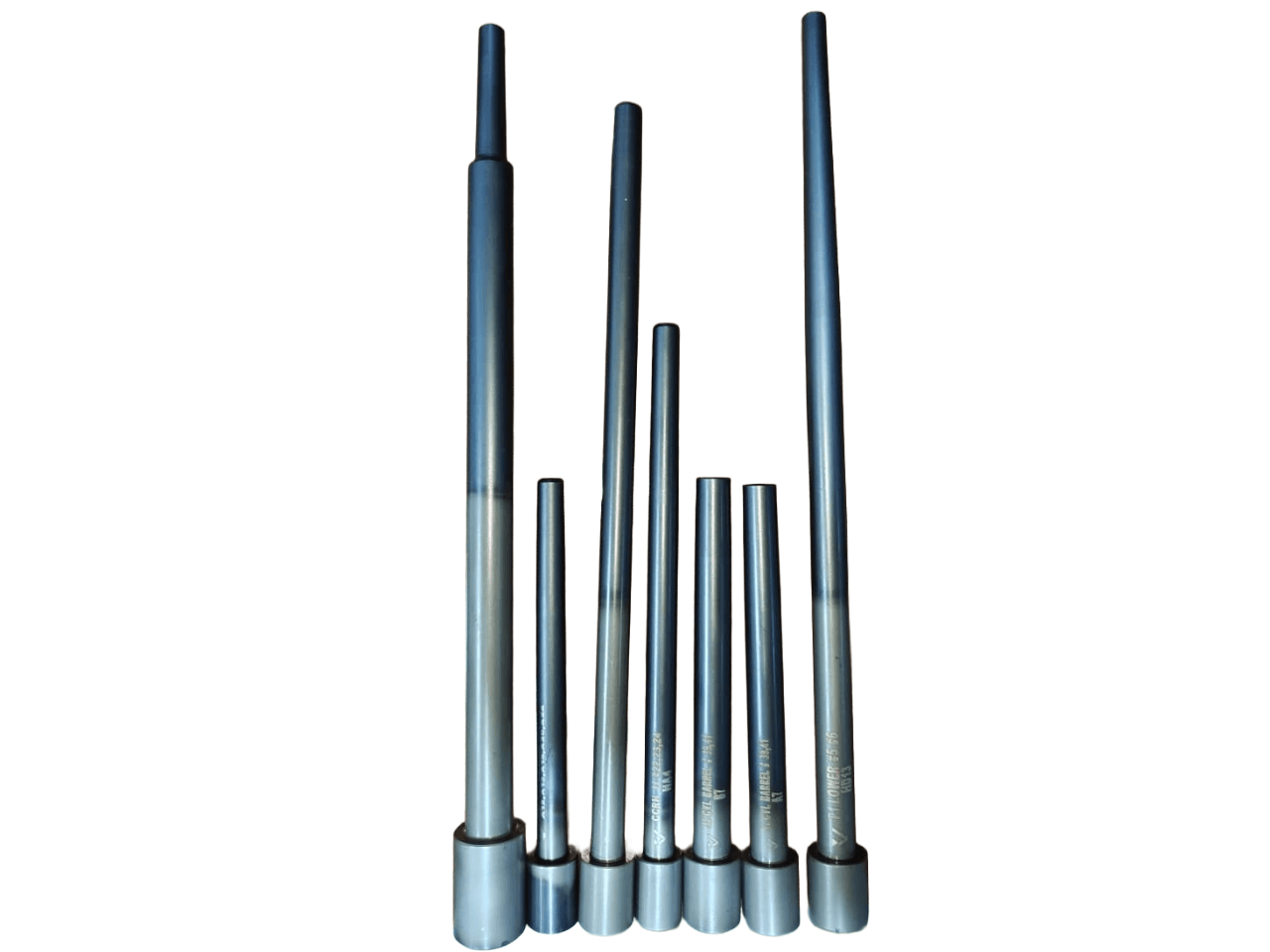

The Jet Cool Core Pin is a precision-engineered, internally-cooled component designed to eliminate hot-spot failures in high-pressure die casting (HPDC) molds. By directing a controlled flow of high-pressure water through a precisely drilled concentric bore, the jet cooler assembly delivers cooling directly to the most thermally stressed zone of the pin. Vyankatesh Engineering's JC Core Pins are renowned among casters for their deep-hole concentricity and extended service life.
Industries Served
Engineering Detail
Key Features
Precisely drilled internal bore for direct jet cooling to the critical hot zone
Minimum bore diameter of 3mm enabling use in very slender pins (from 4.5mm casting dia.)
Gun drilling up to 600mm length with guaranteed deep-hole concentricity
Manufactured from DIN 1.2344 H-13 for combined strength and thermal conductivity
Stringent in-process quality checks at every stage — gun drilling, turning, grinding, and surface treatment
Compatible with all major jet cooler assemblies including Vyankatesh's own 4-variant Jet Cooler
PVD coating applied by trusted partners with thoroughly checked results to increase wear and tear resistance and extend durability
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Cooling critical hot zones in HPDC molds
- Slender core pin applications where surface cooling alone is insufficient
- High-volume automotive part production where cycle time and pin life are critical
- Deep-cavity formations in engine block and transmission dies
Why Choose Vyankatesh
Key Advantages
Directly addresses the most common cause of HPDC core pin failure — heat accumulation
Deep-hole concentricity maintained to 0.015mm TIR, preventing wall collapse at high pressure
Reduces shrinkage porosity in thick sections by improving directional solidification
Shorter cycle times possible due to faster and more effective cooling
Quality Standard
Quality Assurance
Every JC Core Pin undergoes 100% inspection: bore concentricity check, wall thickness measurement, outer diameter verification, and straightness testing before dispatch.
