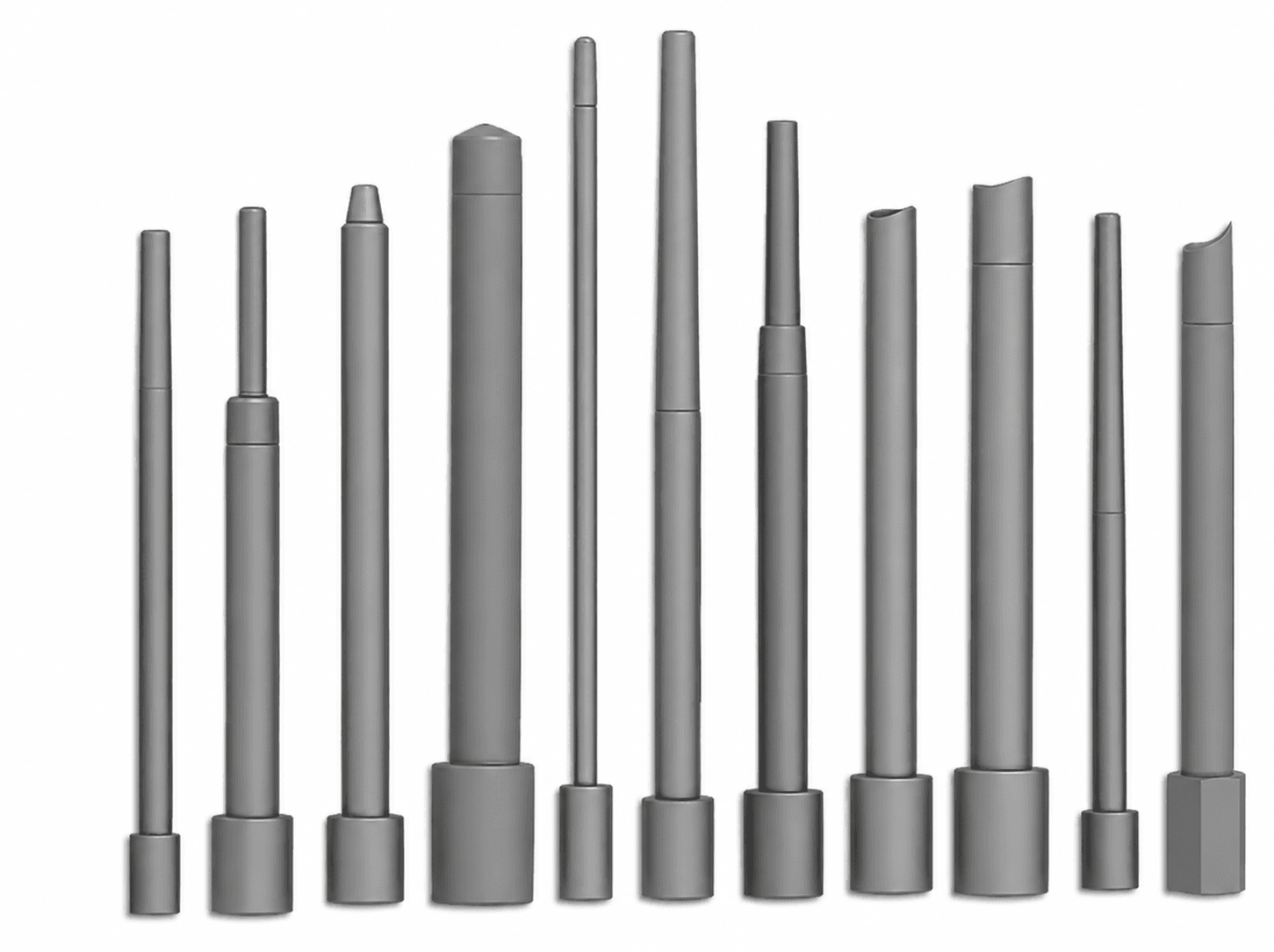

Core Pin
Vyankatesh Engineering's Core Pins are precision-ground, heat-treated components designed to form internal holes and cavities within die casting molds. Manufactured from premium DIN 1.2344 (AISI H-13) hot-work tool steel, each pin undergoes vacuum hardening, nitriding, and optional PVD coating to achieve the hardness and thermal stability required for sustained high-cycle die casting production. Our core pins are engineered to minimize breakdown time, reduce replacement frequency, and maintain dimensional integrity across tens of thousands of casting cycles.
Industries Served
Engineering Detail
Key Features
Manufactured from certified DIN 1.2344 / AISI H-13 billet for maximum thermal fatigue resistance
Vacuum heat treatment ensures uniform hardness throughout the cross-section
Nitriding creates a hard, wear-resistant surface layer that extends service life
Precision-ground to tight dimensional tolerances for consistent hole formation
Custom diameters, lengths, and flange configurations manufactured to drawing
Surface finish optimized to minimize metal sticking and ease ejection
PVD coating applied by trusted partners with thoroughly checked results to increase wear and tear resistance and extend durability
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Forming precise cylindrical and non-circular holes in aluminum die castings
- Engine block and cylinder head core formations
- Transmission housings and gearbox covers
- Complex industrial housing cavities
- Structural automotive brackets and mounting features
Why Choose Vyankatesh
Key Advantages
Significantly reduced breakdown time compared to standard market pins
Controlled heat treatment eliminates distortion during hardening
Strictly managed end-to-end manufacturing from raw material ensures full quality traceability
Available with optional anti-seizure coatings for high-silicon aluminum alloys
Quality Standard
Quality Assurance
Each core pin is individually measured and recorded for diameter, length, straightness, and surface hardness before dispatch. Precision blue matching on VMCs ensures dimensional accuracy.
Expert Answers
Frequently Asked Questions
Need Custom Core Pin?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
