Shot Sleeve

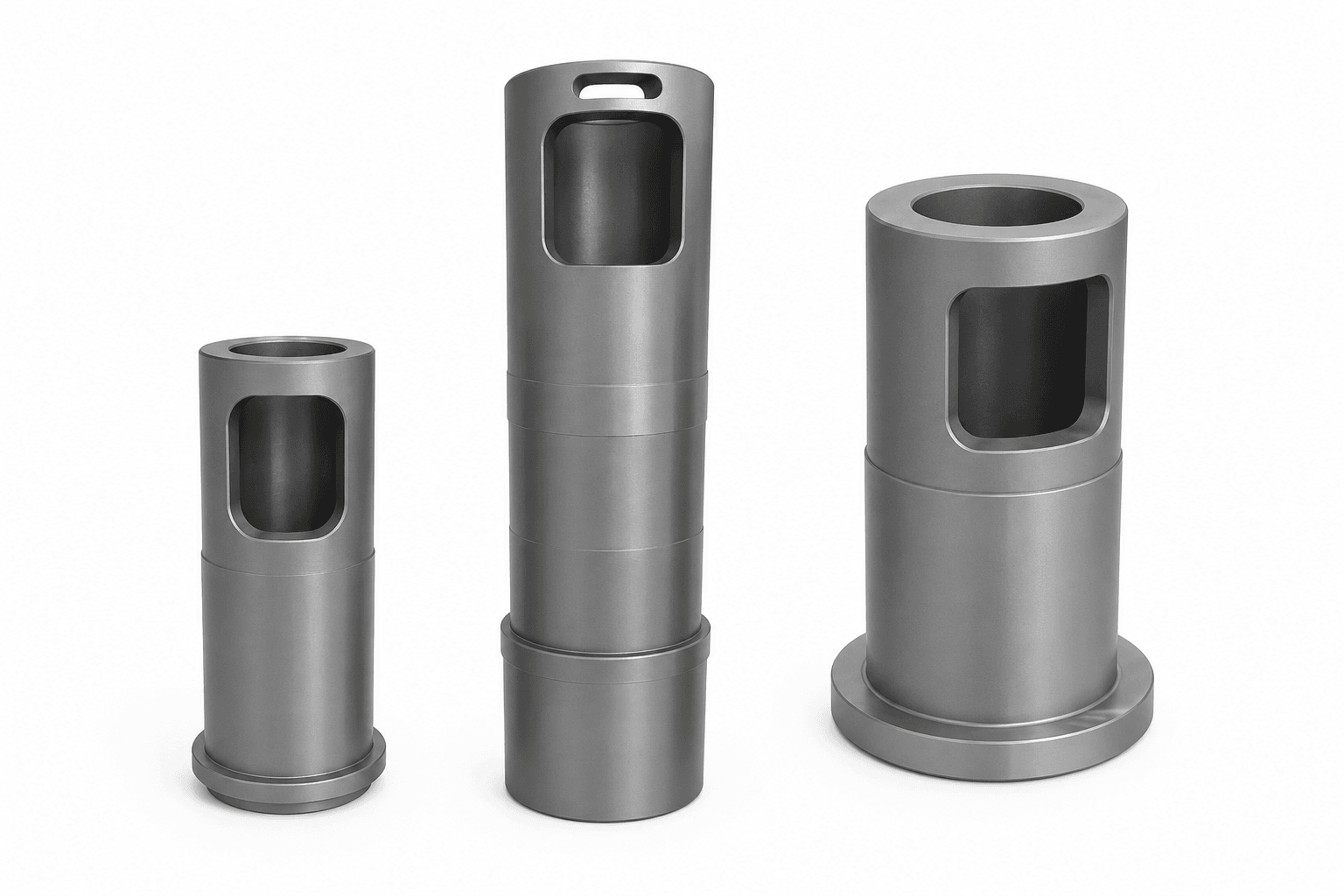

The Shot Sleeve is the primary metal containment component in every cold-chamber high-pressure die casting machine. It receives the molten metal charge and the shot plunger drives the metal through it and into the die cavity. Vyankatesh Engineering Shot Sleeves are manufactured from certified AISI H-13 / DIN 1.2344 and processed through a full precision manufacturing cycle — turning, boring, hardening, grinding, and nitriding — to achieve the bore quality and dimensional accuracy required for smooth plunger travel and leak-free metal injection.
Industries Served
Engineering Detail
Key Features
Manufactured from certified AISI H-13 / DIN 1.2344 for maximum thermal fatigue and erosion resistance
Available fully cooled (water jacket around full length) or partially cooled (cooling at the metal charge zone)
One-piece design for maximum rigidity; two-piece design for ease of maintenance and replacement
Bore honed to Ra ≤ 0.4μm to ensure smooth plunger travel and minimize metal sticking
Thermal balancing engineered to produce consistent metal temperature at the die gate
Continual improvements in surface treatment improve casting quality and sleeve service life
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Cold-chamber high-pressure die casting machines (HPDC)
- Replacement sleeves for worn or eroded shot cylinders
- High-silicon aluminum alloy casting where erosion resistance is critical
- Machines requiring thermally balanced sleeves to reduce misrun and cold shut defects
Why Choose Vyankatesh
Key Advantages
Thermally balanced bore reduces misrun, cold shut, and flow-related defects in the casting
Four configuration options (fully/partially cooled × one/two-piece) provide flexibility for different machine sizes
Superior bore finish reduces plunger friction, extending both sleeve and tip life
Dedicated machining capability allows rapid turnaround for emergency replacements
Quality Standard
Quality Assurance
Bore roundness, straightness, surface finish, and hardness are verified before dispatch. Plunger fit is checked where sample plunger is supplied.
Expert Answers
Frequently Asked Questions
Need Custom Shot Sleeve?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
