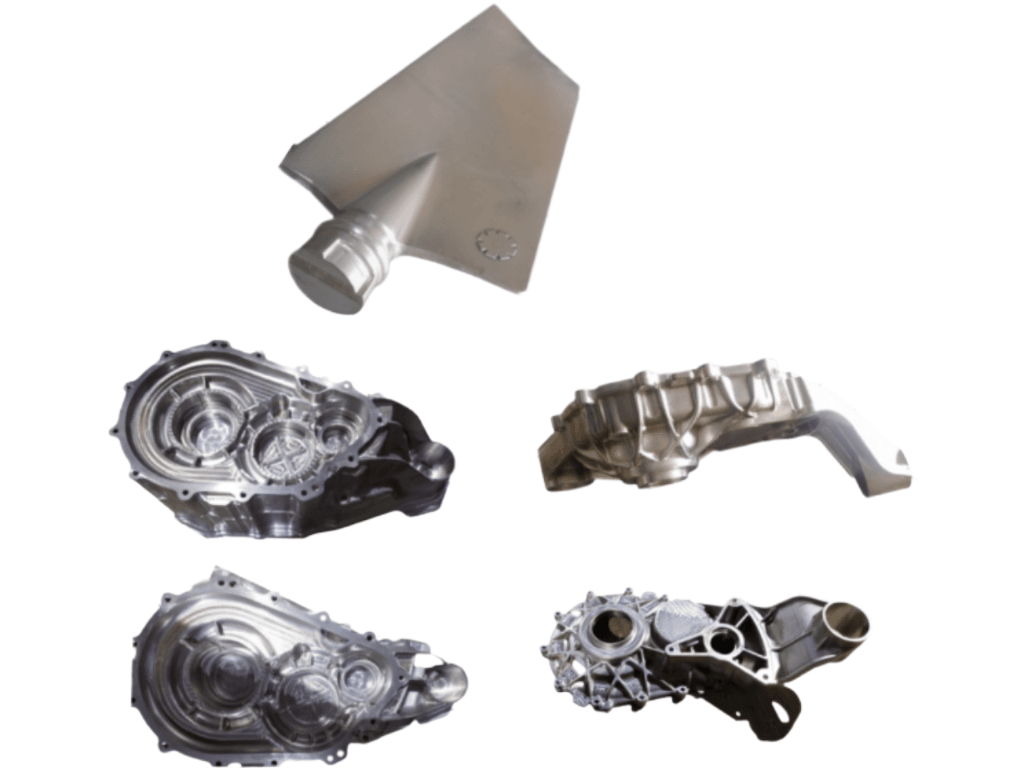

Prototype Insert
Prototype Inserts from Vyankatesh Engineering are fast-track die inserts manufactured to full dimensional and material quality standards, used to validate a new casting design before committing to production tooling. Whether you need a single test insert to verify a critical geometry, or a short run of inserts to produce pre-production samples for customer approval, we provide the same material quality (AISI H-13 / DIN 1.2344), the same heat treatment process, and the same inspection standards as our production tooling — delivered on an accelerated timescale.
Industries Served
Engineering Detail
Key Features
Same material and heat treatment as production tooling — results are directly transferable
Fast-track manufacturing schedule without sacrificing dimensional accuracy
Full vacuum hardening and nitriding process applied, enabling true casting trials
Dimensional inspection to drawing tolerance for accurate design validation
Option to upgrade prototype insert to production status without redesign
PVD coating applied by trusted partners with thoroughly checked results to increase wear and tear resistance and extend durability
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- First article and design validation casting trials
- Pre-production sample approval for new automotive parts
- Short-run production where full production tooling is not yet justified
- Engineering change validation — testing a modified cavity feature before updating production dies
Why Choose Vyankatesh
Key Advantages
Validate casting design with production-equivalent inserts before committing to full die investment
Identify and resolve design issues early, when changes are cheapest
Short-run inserts can be used for pre-production customer approval samples
Single supplier for prototype and production tooling provides seamless progression
Quality Standard
Quality Assurance
Full dimensional inspection with first-article inspection report (FAIR) available on request.
Expert Answers
Frequently Asked Questions
Need Custom Prototype Insert?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
