Side Core Holder

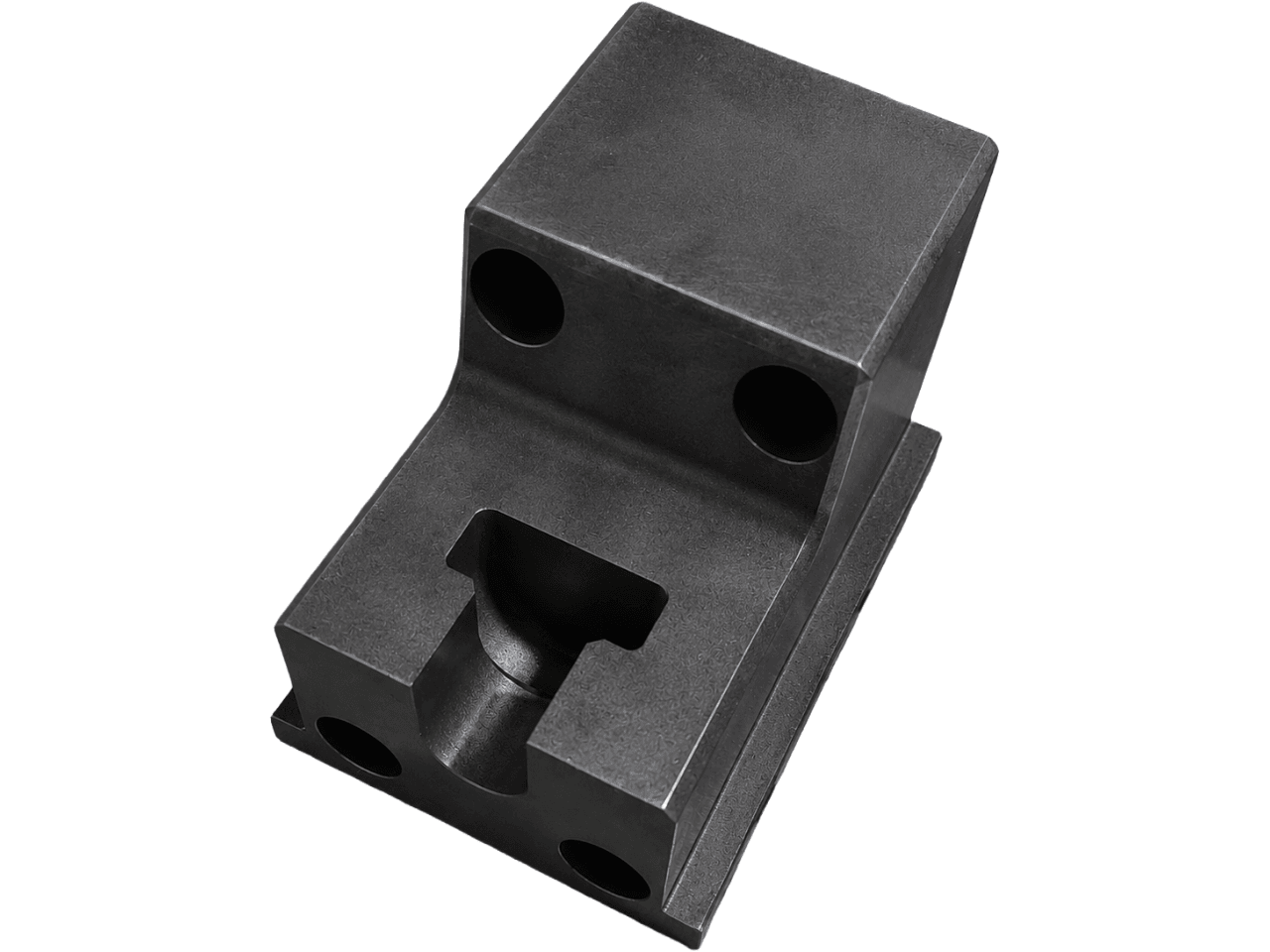

The Side Core Holder is a structural die component that mounts, guides, and retains the side core (or slide) in a die casting die during the shot cycle. It must transmit the full injection pressure load from the side core to the die body without deflection, while maintaining precise alignment of the core pin or insert carried by the slide. Vyankatesh Engineering Side Core Holders are CNC machined from high-grade tool steel, ground on all critical surfaces, and inspected to ensure the geometric relationships between mounting, guide, and core-retaining features are maintained within tight tolerances.
Industries Served
Engineering Detail
Key Features
CNC machined from premium tool steel billet for dimensional accuracy and structural rigidity
All guide and mounting faces precision ground for accurate side core alignment
Designed to withstand full injection pressure transmitted through the slide without deflection
Custom T-slot, dovetail, or pocket configurations for different core retention methods
CMM inspection of all geometric relationships between mounting and guide features
Manufacturing Detail
Material, Finish & Customization
Use Cases
Applications
- Slide and side core retention in HPDC dies
- Angled or cross-die slide mechanisms for undercut features
- High-load applications where injection pressure acts on the slide face
- Replacement holders for worn or damaged OEM slide bodies
Why Choose Vyankatesh
Key Advantages
Precise alignment of side core eliminates flash on the parting surface of the slide
Structural rigidity prevents core deflection under injection pressure, maintaining casting dimensional accuracy
Precision CNC and grinding capability for any holder geometry
Competitive lead times on replacement holders to minimize production downtime
Quality Standard
Quality Assurance
CMM inspection verifies guide face parallelism, core pocket position, and overall assembly height before dispatch.
Expert Answers
Frequently Asked Questions
Need Custom Side Core Holder?
Share your drawing, sample, or specification and our engineering team will provide a tailored solution with competitive pricing and reliable delivery.
